Technical Specifications
- Capacity: 8,000 lbs (3629 kg)
- Rope Material: Synthetic Rope (3/8” x 90’ / 9.5mm x 27.4m)
- Motor: 12V DC, series wound
- Control: Albright Contactor with 2-in-1 plug-in and wireless remote
- Geartrain: 3-Stage Planetary
- Gear Ratio: 218:1
- Brake Type: Spring Brake
- Drum Diameter/Length: 2.5’’/9.0’’ (6.73 cm/23 cm)
- Weight: Shipping Synthetic: 72.40 lbs. (32.84 kg); Net Product Synthetic: 55.20 lbs. (25.04 kg)
- Waterproof Rating: IP68
- Mounting Bolt Pattern: 10.0” x 4.5” (25.4 cm x 11.43 cm)

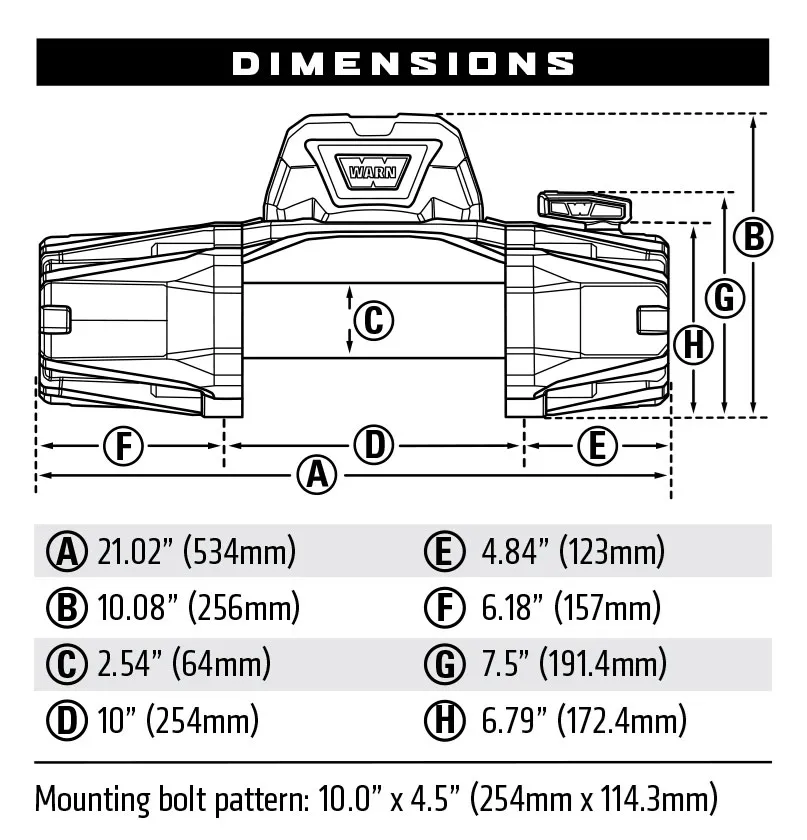

- Dimensions: 21” L x 6.3” D x 10.1” H (53.4 cm L x 16.05 cm D x 25.6 cm H)
- Finish: Powder coating over primer undercoating
- Warranty: 7 years on the electrical parts
Additional Overview and Features
- Type: Electric
- Recommended Use: Vehicle Recovery
- Mount Type: Vehicle Mount
- Voltage: 12 Volt DC
- Electrical Control Type: Albright Contactor
- Motor Type: Series Wound
- Drive Gear Type: 3-Stage Planetary
- Gear Reduction Ratio: 218:1
- Free Spooling: Yes
- Brake Type: Spring
- Line Diameter: 3/8 Inch (0.95 cm)
- Line Length: 90 Feet (27.4 m)
- Line Material: Synthetic
- Fairlead Type: Hawse
- Remote Type: Corded remote with 11.5' (3.5 m) lead
- Mounting Hole Quantity: 4
- Mounting Pattern Length: 10 Inch (25.4 cm)
- Mounting Pattern Width: 4-1/2 Inch (11.43 cm)
- Includes Mounting Hardware: Yes
- Color: Black
- Drum Material: Steel
- Max Line Pull/Line Speed: 8000 lbs (3629 kg) / 6.0 ft/min (1.83 m/min)
- Max Amp Draw/Line Pull: 298 Amps / 8000 lbs (3629 kg)
